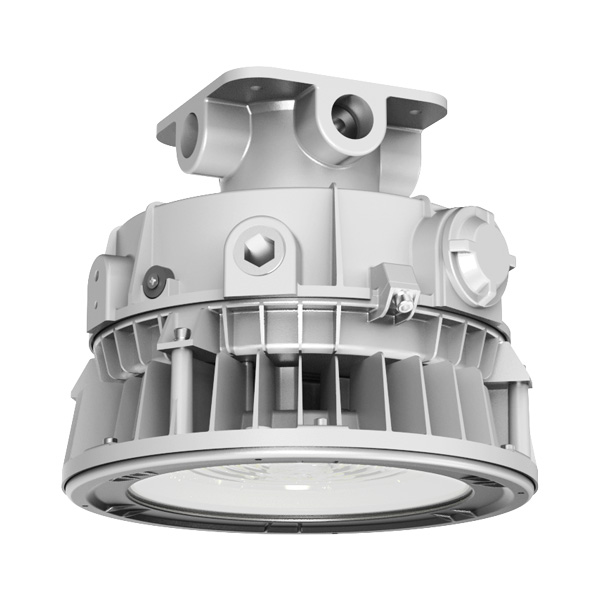

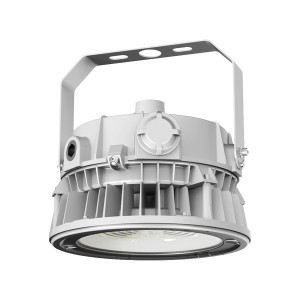

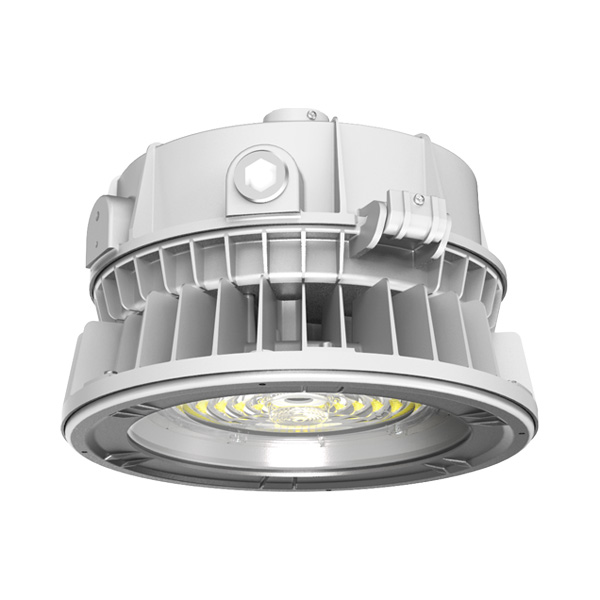

LED Hazardous Location Round Luminaires – MHR21

LED Hazardous Location Round Luminaires – MHR21

Short Description:

The HR series lighting products feature excellent design, high performance and durability, designed for complex and hazardous work scenarios.With aningenious design and a solid internal structure, it readily accommodatesdiverse installation needs, fitting seamlessly into industrial plants and portdocks alike. The durable cast aluminum housing, enhanced by a long-lastingepoxy coating, paired with a high-quality tempered glass lens, grants itexceptional weather resistance and a prolonged lifespan, providing a reliablelighting option that endures.







Features & Benefits:

  • Has 3 beam patterns (60°, 90°, 120°) for versatile lighting applications.
  • Offers scalable lumen packages from 4,000lm to 16,000 Lumens.
  • CCT & Wattage Selectable
  • Universal 120-347 VAC or 277-480 VAC input voltage.

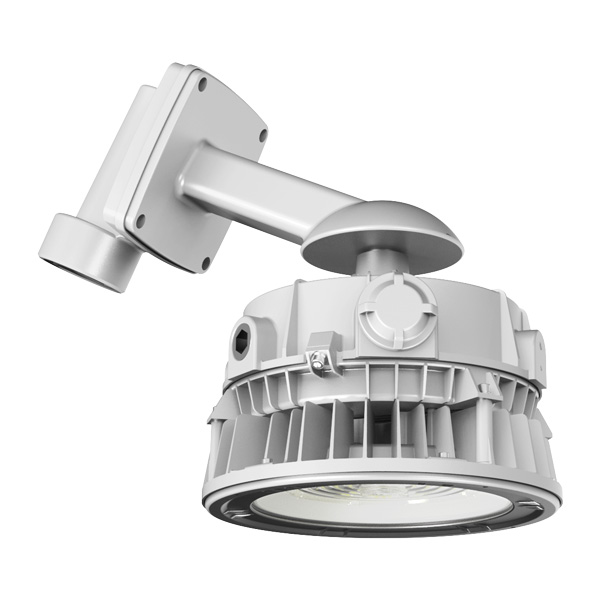

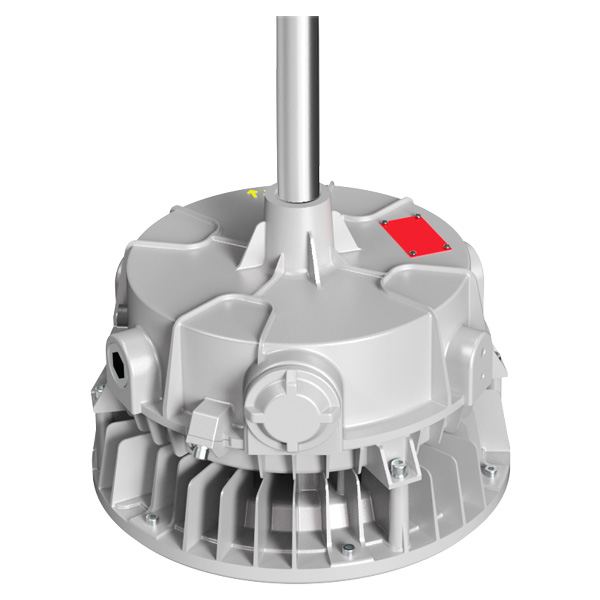

  • Features multiple installation options like trunnion, wall, pendant, round pole and ceiling mounts.
  • Made of robust cast aluminum housing with low copper content, resistant to shock and vibration.caa1ce87副本




Product Detail

Download

Product Tags

Specification
Series No.
MHR21
NEC Protections

Class I Division2, Groups A,B,C,D
Class II Division1, Groups E,F,G
Class II Division2, Groups F,G
Class III

Voltage
120-347 VAC or 277-480 VAC
Dimmable
0-10V dimming
CCT
3000K/4000K/5000K Selectable
Wattage
Max 60W,  Max100W
Light Output
Max 9,400lm,  Max 16,000lm
UL listing
UL-US-2416528-0
Operating Temperature
-40°C to 65°C ( -40°F to 149°F )
Lifespan
100,000 hours
Warranty
5 year
Application
Oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous location
Mounting
Trunnion mount, Wall mount , Pendant mount , Round pole mount , Ceiling mount
Dimensions
60W Ø9.4" × H9.6"
100W Ø10.6" × H10.2"

  • Spec-LED Hazardous Location Round Luminaires-MHR21
