Linear High Bay

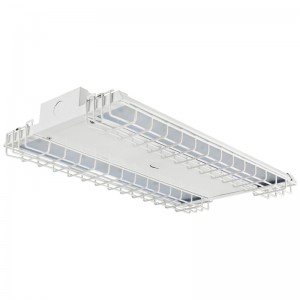

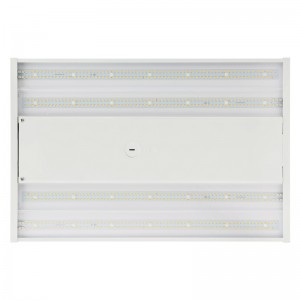

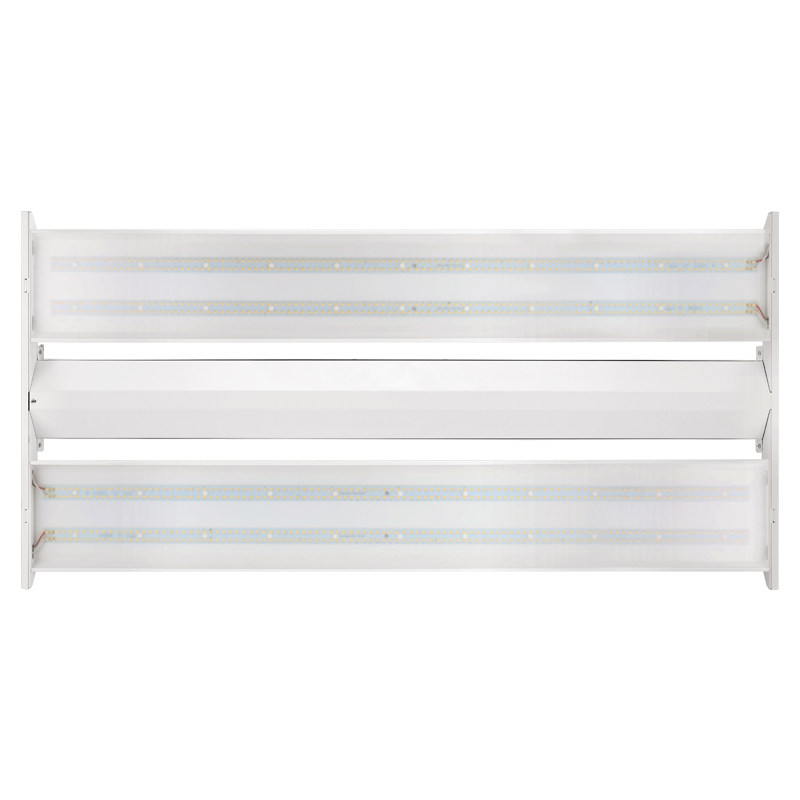

Linear High Bay – MLH04

Short Description:

With 2ft housing and long-life LEDs, MLH04 was designed to replace up to 400W MH or fluorescent linear tubes and can be mounted as high as 40 feet, making them ideal for use in warehouses and industrial applications. The 180 watts and 205 watts LED light engine provide nominal efficacies of 132 lm/w for applying to new lighting layout or more energy-efficient renovation.

Send email to us

Product Detail

Download

Product Tags

Specification
Series No.	MLH04
Voltage	120-277 VAC or 347-480 VAC
Dimmable	1-10V dimming
Light Source Type	LED chips
Color Temperature	4000K/5000K
Power	90W, 130W, 180W, 210W, 270W, 300W, 370W
Light Output	12600 lm, 18500 lm, 25200 lm, 30000 lm, 36000 lm, 40000 lm 50000 lm
UL listing	UL-CA-2001438-1, UL-CA-L359489-31-60219102-2, E359489
Operating Temperature	-40°C to 55°C ( -40°F to 131°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Office, Warehouse, Commercial lighting
Mounting	Pendant or surface mount
Accessory	PIR Motion Sensor, Emergency Battery Backup
Dimensions
90W & 130W	23.62×9.84×1.77in
180W & 210W	23.62×15.75×1.77in
130W & 180W	47.55×14.4×2.88 in
270W & 300W & 370W	47.55x24x2.87in
