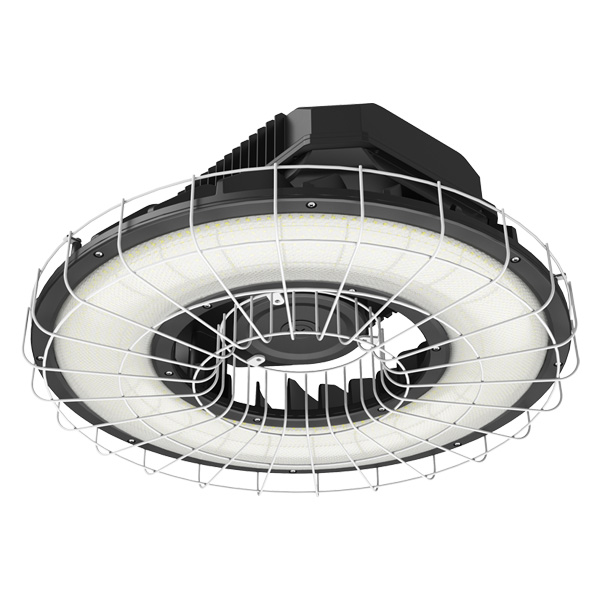

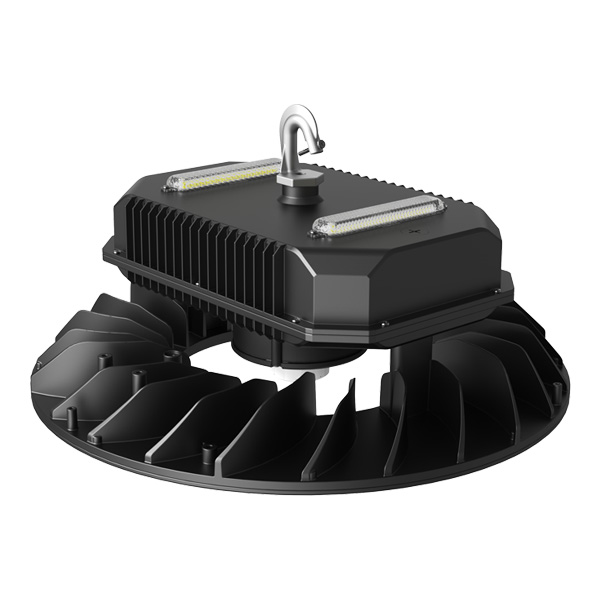

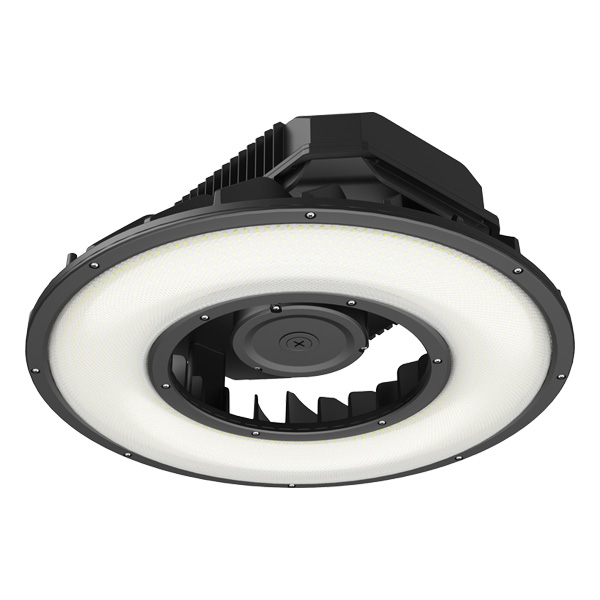

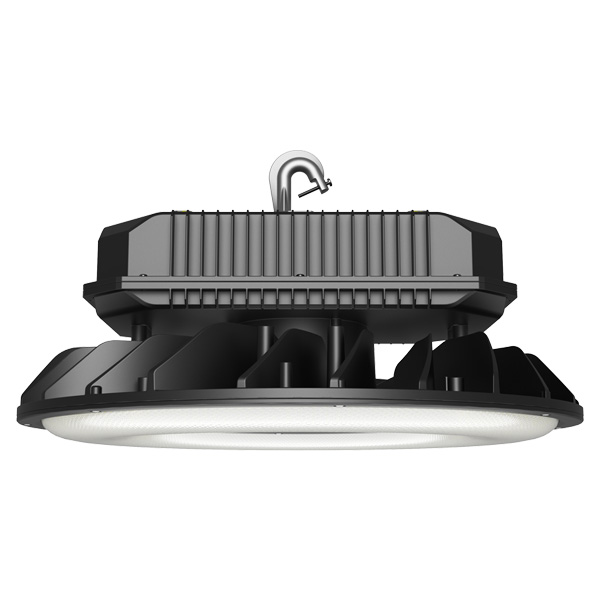

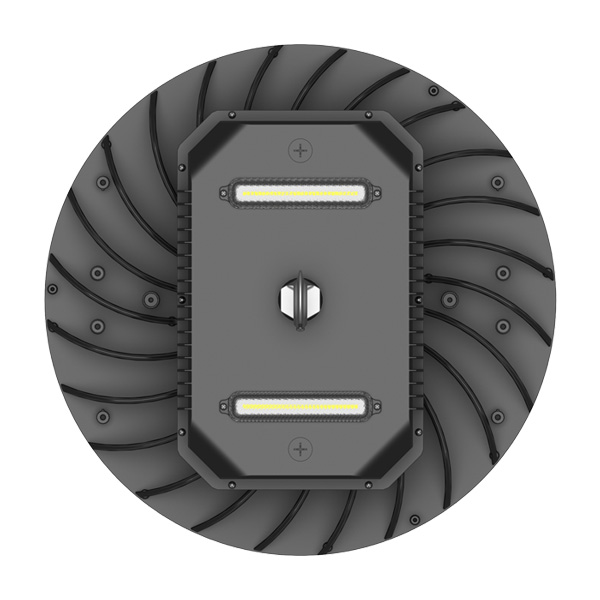

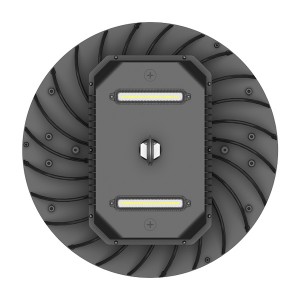

LED High Bay – MHB18
Short Description:
High bay is an ideal light source for energy-saving, low-maintenance lighting in large Spaces and suitable for the most demanding environments. Durability and functionality are taken into account in the design, featuring unparalleled electrical, environmental and thermal ratings, while offering outstanding efficiency, visual comfort, special lighting and easy installation. Its high luminous efficiency saves costs for customers and is an ideal choice for industrial and manufacturing applications.
Features & Benefits：
- Durable die-cast aluminum housing and polycarbonate lens.
- Advanced aesthetic design with a screw-free optical lens for a clean and uncluttered look.
- Four adjustable Wattage levels available for each models.
- 0-10V dimming driver standard for 10% to 100% dimming
- 6KV surge protection.
- Operating temperature is -40°C to 75°C.
| Specification | |
| Series No. |
MHB18 |
| Voltage |
120-277V or 277-480V |
| Dimmable |
0-10V dimming |
| Color Temperature |
3000K/4000K/5000K |
| Power |
75W | 95W | 110W | 150W | 190W | 220W | 250W 280W | 310W | 375W | 440W | 500W | 560W | 625W |
| Light Output |
12,000lm | 15,000lm | 18,000lm | 24,000lm | 30,000lm 35,000lm | 40,000lm | 45,000lm | 50,000lm | 60,000lm 70,000lm | 80,000lm | 90,000lm | 100,000lm |
| UL listing |
UL-US-2301661-3 |
| Operating Temperature |
-40°C to 75°C |
| Lifespan |
100,000 hours |
| Warranty |
5 year |
| Application |
Warehouses, Heavy Industry |
| Mounting |
Hanging Ring Mount，Conduit Pendant Mount，U-Bracket Mount |
| Accessory |
Emergency Battery, Plug-in PIR sensor, U-Bracket |
| Dimensions | |
| Size |
Ø19.2 in x 6.7 in |
-
