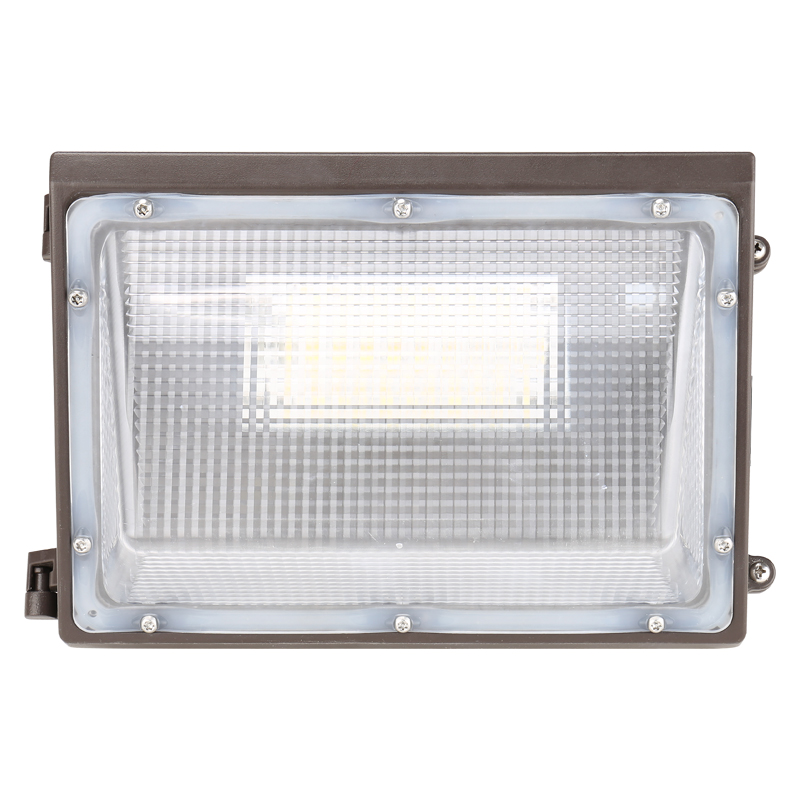

Wall Pack Light – MWP14

Short Description:

The WP14 series is high end design of our Wallpack category, which is CCT and Power selectable, the installation can be done without opening the driver box, further more Photocell, Sensor and Emergency back up are also available for this version. As versatile as it is efficient, WP14 is designed to replace up to 400W metal halide while saving up to 87% in energy costs. The classic architectural shape of the WP14 series was designed for applications such as Hotel, Restaurants, Schools, Office, warehouse and other commerical buldings.

Send email to us

Product Detail

Download

Product Tags

Specification
Series No.	MWP14
Voltage	120-277 VAC
Dimmable	1-10V dimming
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	27W, 45W, 62W, 70W, 100W
Light Output	3600 lm, 5900 lm, 8100 lm, 9600 lm, 13200 lm
UL listing	UL-CA-2118057-1
Operating Temperature	-40°C to 40°C ( -40°F to 104°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Pathway, Building entryways, Perimeter lighting
Mounting	Junction box (No need to open driver box)
Accessory	Photocell - Button (Optional), Occupancy Sensor (Optional) Emergency Battery Backup, Power and CCT controller (Optional)
Dimensions
Small size27W/45W/62W	11.95x7.7x6.23in
Large size70W/100W	14.2x7.4x6.6in
