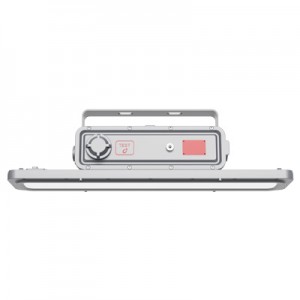

Hazardous Location Linear Luminaire-HL01

Hazardous Location Linear Luminaire-HL01

Short Description:

HJ Series is compact in appearance, presenting excellent design, outstanding performance, and high durability for targeted
lighting in harsh and hazardous environments. It comes with various installation methods for diverse applications. The explosion-proof HJ is suitable for places where flammable
gases, vapors, and combustible dust are present. Its applications cover oil and gas rigs, petrochemical plants, paint spray booths,
and other hazardous locations



Features&Benifits:

  • The HL Series provides 171 lumens per watt for high - efficiency lighting.
  •  Its IP66 - rated housing suits harsh environments well.
  •  It supports 120 - 347VAC or 277 - 480VAC for power adaptability.
  •  Multiple installation methods offer great installation flexibility.
  • The LED has an estimated 100,000 - hour lifespan for long - term use.caa1ce87副本



Product Detail

Download

Product Tags

Specification
Series No.
MHL01
NEC Protections

Class I Division2, Groups A,B,C,D
Class II Division1, Groups E,F,G
Class II Division2, Groups F,G
Class III

Voltage
120-347VAC or 277-480VAC
Dimmable 0-10V Dimming
CCT
2700K, 4000K, 5000K Selectable
Wattage
60W,100W
Light Output up to 171 lm/W
Beam Angle Medium, Narrow, Clear
Waterproof level
IP66
Operating Temperature
-40°C to 60°C
Lifespan
100,000 hours
Warranty
5 year
Application
Oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous location
Mounting
Trunnion mount / Pole mount (125° non-vertical) / Tube hanging mount / Pole bracket mount / Chain hanging mount
Dimensions
Size L21.65" × W4.53" × H6.15"

  • Spec-LED Hazardous Location Linear Luminaire-MHL01
