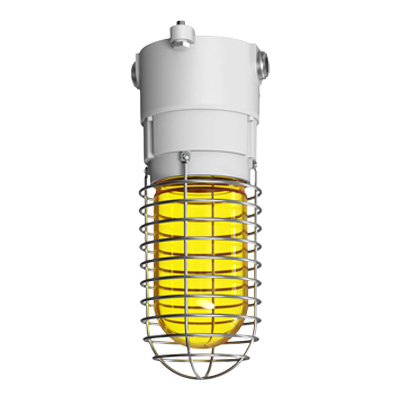

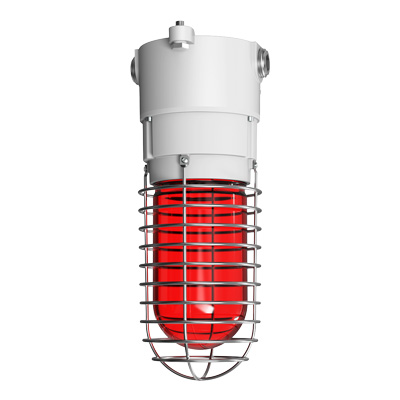

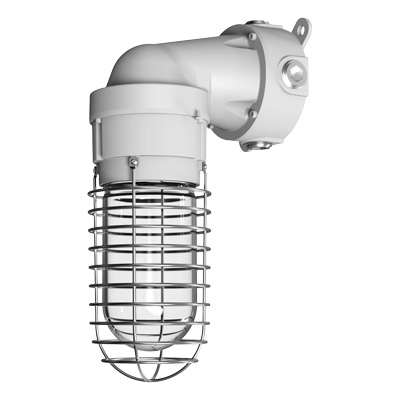

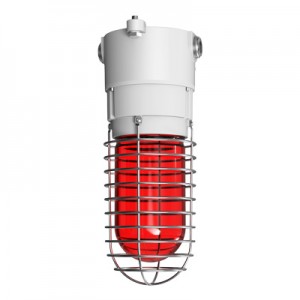

Hazardous Location Jelly Luminaire-HJ01

Hazardous Location Jelly Luminaire-HJ01

Short Description:

The HJ Series is compact in appearance, presenting excellent design, outstanding performance, and high durability for targeted
lighting in harsh and hazardous environments. It comes with various installation methods for diverse applications. The explosion-proof HJ is suitable for places where flammable
gases, vapors, and combustible dust are present. Its applications cover oil and gas rigs, petrochemical plants, paint spray booths,
and other hazardous locations



Features & Benefits:

    • Hazardous location compliance for gases and dust.
    • Multiple mounting options including ceiling, tube hanging, and wall mounts.
    • High performance with CRI 80 and lumen output up to 4280lm.
    • IP65 rating for use in wet locations.
    • R, G, Y optical filters (optional)caa1ce87




Product Detail

Download

Product Tags

Specification
Series No.
MHJ01
NEC Protections

Class I Division2, Groups A,B,C,D
Class II Division1 Groups E,F,G
Class II Division2 Groups F,G
Class III

Voltage
120-347VAC
Dimmable 0-10V Dimming
CCT
2700K, 3000K, 4000K , 5000K, 5700K, 6500K,  Green, Red, Yellow
Power
10W,20W,30W,40W
Light Output up to 138 lm/W
Operating Temperature
-40°C to 60°C
Lifespan
100,000 hours
Warranty
5 year
Application
Oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous location
Mounting
Ceiling, Pendant, Wall, Round Pole Mount

  • Spec-LED Hazardous location jelly jar luminaires MHJ01
