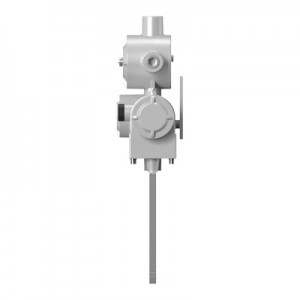

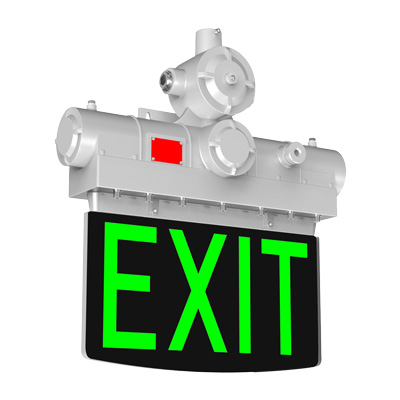

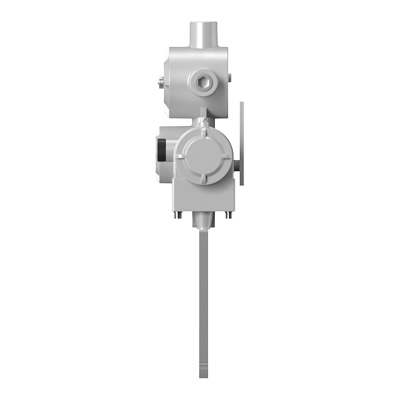

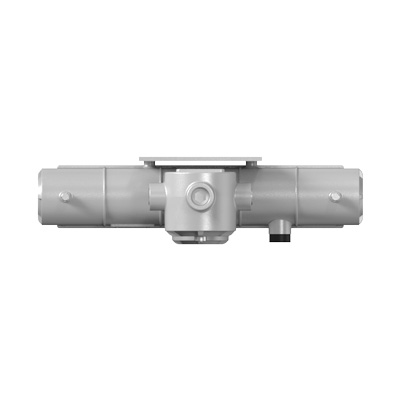

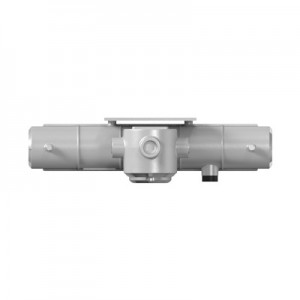

Emergency Exit Sign Luminaire – MHE03

Emergency Exit Sign Luminaire – MHE03

Short Description:

MESTER’s  Hazardous Location Luminatres delivers versatile solutions, efficient illumination, and outstanding stability for complex and hazardous work
scenarios. With an ingenious design and a solid internal structure, it readily accommodates diverse installation needs, fitting seamlessly into industrial plants and port docks alike.
The durable cast aluminum housing, enhanced by a long-lasting epoxy coating, paired with a high-quality tempered glass lens grants it exceptional weather resistance and a prolonged
lifespan, providing a reliable lighting option that endures.



Features & Benefits:

  • Strong Thermoplastic Structure Design ensures durability and reliability.
  •  IP66 Ingress Protection rating provides excellent protection against dust and water ingress, suitable for wet environments.
  •  IK08 protection level guarantees high resistance to mechanical impact.
  •  A single-faced panel or a double-faced panel with letters isoptional.
  •  Estimated 100,000-hour LED lifespan ensures long-term performance and reduces maintenance costs.caa1ce87副本1

Product Detail

Download

Product Tags

Specification
Series No.
MHE03
NEC Protections

Class I, Division 1, Groups C, D
Class I Division 2, Groups A, B, C, D
Class II Division 1, Groups E, F, G
Class II Division 2, Groups F, G
Class III

Voltage
120-347VAC
Emergency time
180 minutes
Light Color
Green, Red
Power
3W
Waterproof level
IP66
Operating Temperature
0°C to 45°C
Lifespan
100,000 hours
Warranty
5 year
Application
Public Buildings,Commercial Facilities, Transportation Hubs
Mounting
Wall mount , Pendant mount , Pendant with Safe Wires
Dimensions
3W
L16.61" × W4.25" × H17.98"

  • Spec Emergency Exit Sign Luminaire-MHE03
