LED Flood Light

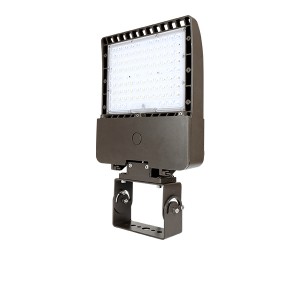

LED Flood Light – MFD09

Short Description:

Die-cast aluminum housing has integral heat sink fins to optimize thermal management through conductive and convective cooling. The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life. Scalable Lumen Packages from 14,900 to 51,100 Lumens replaces up to 1000W Metal Halide. A variety of mounting options are also available including wall mount, slipfitter and trunnion.

Send email to us

Product Detail

Download

Product Tags

Specification
Series No.	MFD09
Voltage	120-277VAC or 347-480VAC
Dimmable	1-10V dimming
Light Source Type	LED chips
Color Temperature	4000K/5000K
Power	100W, 150W, 200W, 240W, 300W, 350W
Light Output	14800 lm, 22200 lm, 28800 lm, 35500 lm, 43700 lm, 51000 lm
UL listing	Wet location
Operating Temperature	-40 ̊ C to 45 ̊ C ( -40°F to 113°F )
Lifespan	100,000 hours
Warranty	5 year
Application	Landscape, Building facades, Commercial lighting
Mounting	Wall mount, Slipfitter or Trunnion(Yoke)
Accessory	Photocell (Optional)
Dimensions
100 & 150W & 200W	21.56x12.99x2.82in
240W & 300W & 350W	26.58x14.29x3.15in
