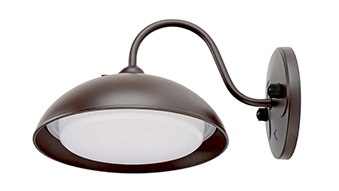

Iftiinka GOOSENEK MGN01
MESTER cusub Gooseneck Light waa iftiin qurxin gaar ahqalab kuu ogolaanaya inaadcusboonaysii muuqaalka dhismahaaga.Gacan qoor goose ah oo qurux badan oo qaloocan, fudud oo fure hoose ahnaqshadeynta muuqaalka, si fiican ayaa loogu dabaqi karaa noocyo kala duwanqaababka dhismaha. Rakibadu waadegdeg ah oo fudud, iyo 28Wwaxay leedahay shaqo adag oo taageeri karta heerkulka midabka 5hagaajinta.
MUUQAALAHA GAARKA AH
Dhismaha
● buufinta budada dahaarka waara waxay kordhin kartaa cimriga
ee qalabka.
● Naqshadaynta qolofka isku dhafan waxay si fiican u isticmaali kartaa noocyo kala duwan oo qoyan
deegaanka goobta.
● 5VA oo lagu qiimeeyay guryaha PC ee 12W moodeel iyo guri-dhimasho oo 28W ah
model.
Optics
● Nooca qaybinta guud ee inta badan deegaanka.
● Xirmooyinka Lumen ee la qiyaasi karo laga bilaabo 1000 ilaa 3000 Lumens.
●Isticmaalka milicsiga sare iyo fikradaha naqshadaynta indhaha
waxay bixisaa isku darka ugu fiican ee iftiin toosan iyo toosan.
Module LED

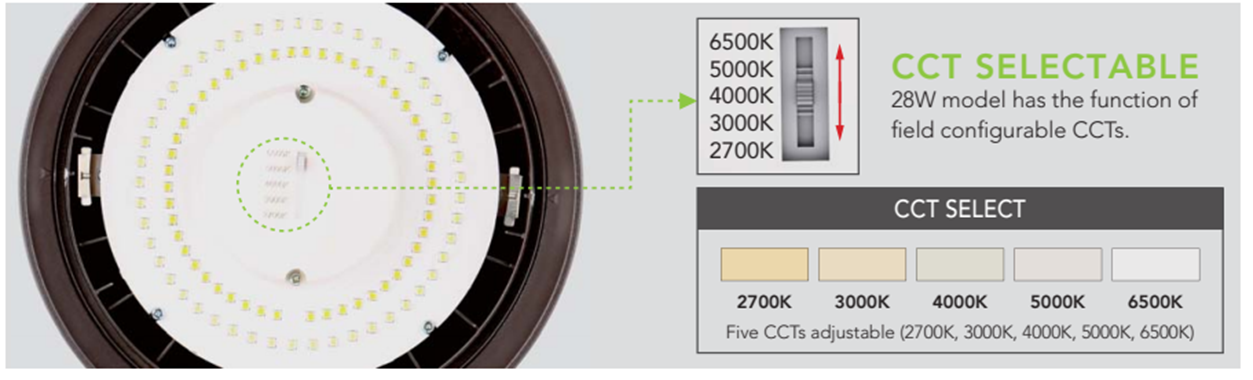

●CCT 3000K 4000K iyo 5000K ayaa diyaar u ah 12W halka
28W waxay bixisaa CCTs la dooran karo, waxaa lagu hagaajin karaa inay noqdaan 2700K/3000K/
4000K/5000K/6500K.
Koronto
●Xadhka Voltage 120V ee moodelka 12W, Voltage Universal 120-277VAC
nooca 28W.
28W waxay taageertaa qaabaynta darawalka ee 0-10V caadiga ah,
12W ma taageerayo dhumayn.
● Labada darawalba waxay leeyihiin cunsur koronto>90%, THD <20%.
● Heerkulka heerkulka shaqaynaya: -40°C ilaa 40°C (-40˚F - + 104˚F).
Xakamaynta
● Isku-dhafka Photocell ayaa lagu daray.
Rakibaadda
● darbiga korkiisa.
Cimriga
● Qiyaasta 50,000-saac ee cimriga LED ee ku salaysan natiijooyinka IES LM-80 iyo
xisaabinta TM-21.
Dammaanad
● Damaanad xaddidan oo laba sano ah oo loogu talagalay 12W.
● Shanta sano ee dammaanadda xaddidan ee 28W.
Shahaadooyinka
UL CUL meel qoyan oo la sugayo.
Ogow
●Waxqabadka dhabta ahi wuu ka duwanaan karaa natiijada deegaanka isticmaalaha
iyo codsi. Dhammaan qiimayaasha waa naqshad ama qiyam caadi ah, oo la cabbiray
xaaladaha shaybaarka ee 25°C(± 5°C) qeexiddu waxay ku xiran tahay
is beddel ogeysiis la'aan.
XOGTA WAXQABADKA
| NIDAAMKAWATTS | Voltage | CRI | 2700K | 3000K | 4000K | 5000K | 6500K | ||||||
| LUMENS | LPW | LUMENS | LPW | LUMENS | LPW | LUMENS | LPW | LUMENS | LPW | ||||
| 28W | 120-277V | 80 | 3000lm | 107 lm/W | 3000lm | 107 lm/W | 3000lm | 107 lm/W | 3000lm | 107 lm/W | 3000lm | 107 lm/W | |
| NIDAAMKA WATTS | Voltage | CRI | 3000K | (4000K) | (5000K) | ||||
| LUMENS | LPW | LUMENS | LPW | LUMENS | LPW | ||||
| 15W | 120V | 80 | 1000lm | 83 lm/W | 1000lm | 83 lm/W | 1000lm | 83 lm/W | |
XOGTA KORONTADA
| TIRADA DARAWADA | WADANKA HADDA (mA) | AWOOD MAGACA AH (W) | NPUTVOLTAGE (V) | Hadda (Amps) |
| 1 | 450 | 28 | 120 | 0.23 |
| 28 | 208 | 0.13 | ||
| 28 | 240 | 0.12 | ||
| 28 | 277 | 0.10 |
QAYBKA
KULUL
| HAGAHA Dalbashada Tusaalaha:MGN0128W27VDDKDPY | ||||||
| Nooca Qalabka | Wattage | Gelida Voltage | CCT | dhame | Photocell (Ikhtiyaarka) | Xeerka Gudaha |
| MGN01 Taxanaha Gooseneck LEDfixture | 12W 28W | 12V 120V 27V 120-277V | DDK Heerkulka Midabka La Qaban Karo30K 3000K 40K 4000K 50K 5000K | D Maar Madow | P oo leh Photocell | Banaan Alif tiro |
Fiiro gaar ah: 1. Hal CCT 3000K, 4000K iyo 5000K ayaa diyaar u ah 12W, kaliya 28W ayaa diyaar u ah DDK .
2. 12W waxa ay taageertaa gelinta korantada ee 120V, 28W waxa ay taageertaa 120-277V.
