DUXERIT BAV HB08'

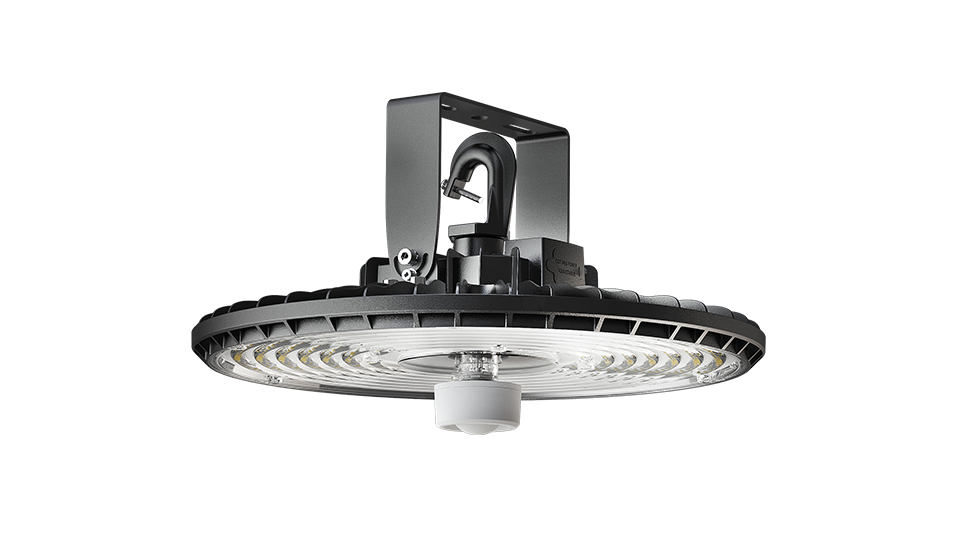

MESTER MHB08 est pactus, rotundus, budget-amicus sinus altus qui componit
magna observantia cum aestheticis premium. Exterior auctor est valde
aptabilis et inconsutilis inseri potest in varios ambitus sine
ens obtrectatorem. Unicum consilium sistens firmitatem maximam praebet et

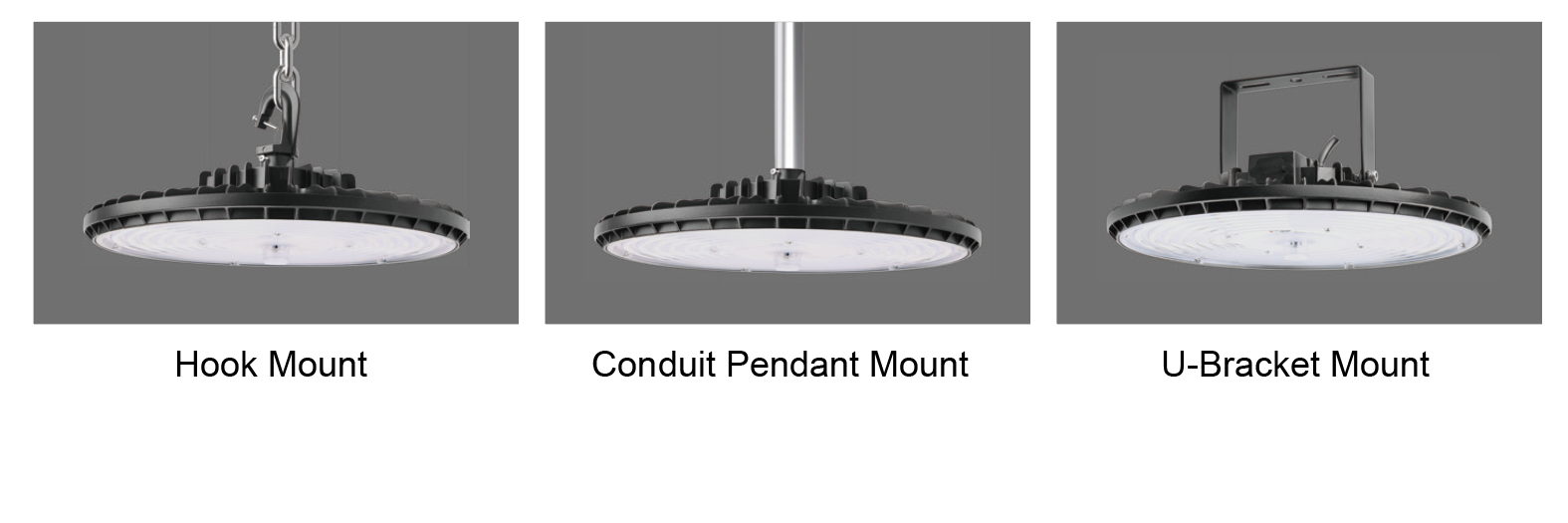

commendatio, sustentans Hook, Pendant et Superficies trium modorum institutionum;
reposuit MH usque ad 1000W. Singula exempla seriei colorum sustinet MHB08
temperatura temperatio et 4 positionum dispositionem observandi, productum reducendi
budgets stocking. Ad libitum tumultuarios et Sensor.It specimen pro variis
commerciales et industriales applicationes accendit ut horreis, fabricandis;
et stadia.
STRUCTURAL DESIGN
Construction
Iactis thermally effectum ducit LED calor ad optimize perficiendi
et vitam longam.
Cum corrosio repugnans pulveris efficiens quod praebet tutelam
et species architecturae bene adaptatae ambitui.
Optica

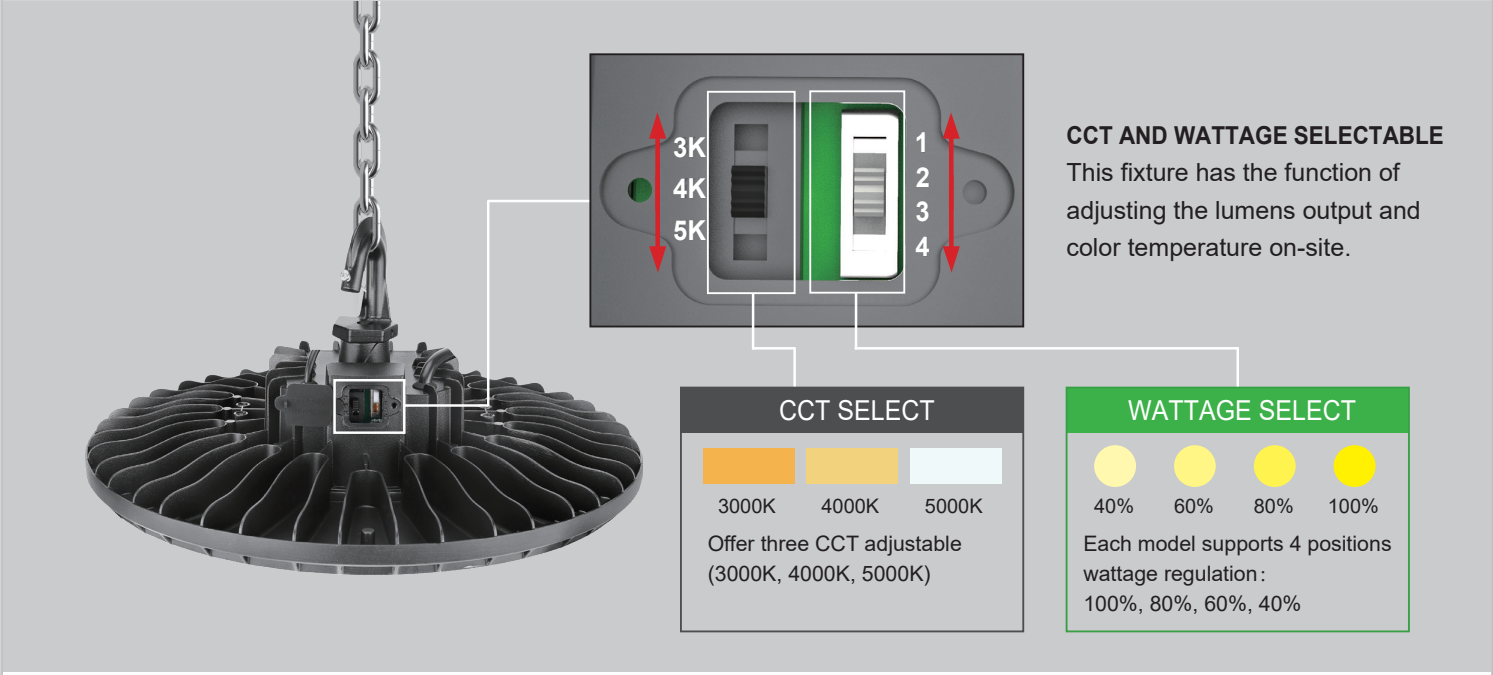

● Lumina tormenta in promptu sunt versio tunable colorata, in cann
mutari ad tria CCTs (3000K, 4000K, 5000K) vel duorum CCTs
(4000K, 5000K).
● Fasciculi scalabiles Lumen ab 6000 ad 40,000 Lumen.
● Anti-UV prismatica lens translucens ordinatur ad figuram lucis
uniformitas et fulgor regat lumen.
Electrical
● Universal 120-277 VAC inputatio intentionis.
● 0-10V vexillum lux coegi, 10% ad 100% dimming.
Ambo coegi factorem potestatem habent>90%, THD <20%.
Unumquodque exemplar adaptari potest quattuor Watts: 100%, 80%, 60%, 40%
● Temperatura operans range :-30℃ ad +40℃ (-22˚F ad + 104˚F).
Imperium
● Photocell option.
Warranty
Quinque-annus warantum.
Testimonia
UL cUL udo locus numeratur.
DesignLights Consortium™ Qualified.
Nota: Quaeso referri ad DLC website pro specifica productum industriawww.designlights.org.
Imperium
Proin sensorem vel diei sensorem Occupancy libitum.
● Libitum seu Bluetooth sensorem Bluetooth moderatoris.
● Silvair Luminaire Level Administratio Imperium (LLLC) ad libitum.
● Sharkward Luminaire Level Lucis Imperium (LLLC) ad libitum.
● Etiam compatible cum 3 factione retis captiosorum ratio sistendi.
● Libitum pro Subitis Pugna Tergum.
Nota
Actualis perficientur potest differre sicut effectus finem-user environment
et applicatione. Omnes valores sunt design seu valores typici, mensurati
sub laboratorio conditionibus apud 25°C(±5°C)
mutare sine notitiam.
SPECIFICATIO Features
DATA ELECTRICAL
| NUMBER OF DRIVERS | AGITATOR current (mA) | APPELLATIO POTESTATE (W) | NPUTVOLTAGE (V) | Textus (Amps) |
| 1 | 800 | 100 | 120 | 0.83 |
| 100 | 208 | 0.48 | ||
| 100 | 240 | 0.42 | ||
| 100 | 277 | 0.36 | ||
| 100 | 347 | 0.29 | ||
| 105 | 347 | 0.30 | ||
| 105 | 480 | 0.22 | ||
| 1 | 1150 | 150 | 120 | 1.25 |
| 150 | 208 | 0.72 | ||
| 150 | 240 | 0.63 | ||
| 150 | 277 | 0.54 | ||
| 150 | 347 | 0.43 | ||
| 155 | 347 | 0.45 | ||
| 155 | 480 | 0.32 | ||
| 1 | 1280 | 160 | 120 | 1.33 |
| 160 | 208 | 0.77 | ||
| 160 | 240 | 0.67 | ||
| 160 | 277 | 0.58 | ||
| 160 | 347 | 0.46 | ||
| 165 | 347 | 0.48 | ||
| 165 | 480 | 0.34 | ||
| 1 | 1700 | 210 | 120 | 1.75 |
| 210 | 208 | 1.01 | ||
| 210 | 240 | 0.88 | ||
| 210 | 277 | 0.76 | ||
| 210 | 347 | 0.61 | ||
| 215 | 347 | 0.62 | ||
| 215 | 480 | 0.45 | ||
| 1 | 1750 | 230 | 120 | 1.92 |
| 230 | 208 | 1.11 | ||
| 230 | 240 | 0.96 | ||
| 230 | 277 | 0.83 | ||
| 230 | 347 | 0.66 | ||
| 235 | 347 | 0.68 | ||
| 235 | 480 | 0.49 | ||
| 1 | 1850 | 235 | 120 | 1.96 |
| 235 | 208 | 1.13 | ||
| 235 | 240 | 0.98 | ||
| 235 | 277 | 0.85 | ||
| 235 | 347 | 0.68 | ||
| 240 | 347 | 0.69 | ||
| 240 | 480 | 0.50 |
ADJUSTABLE LUMEN REFERO TABLE
| MHB08150W | ||||||||
| CONLOCATIO |
SYSTEM WATTS | CRI | 3000K | 4000K | 5000K | |||
| LUMENS | LPW | LUMENS | LPW | LUMENS | LPW | |||
| 100% | 150W | 70 | 22000lm | 147 lm/w | 24000lm | 160 lm/w | 22500lm | 150 lm/W |
| 80% | 120W | 70 | 18000lm | 150 lm/w | 2000lm | 167 lm/w | 19000lm | 158 lm/W |
| 60% | 90W | 70 | 14000lm | 156 lm/w | 15500lm | 172 lm/w | 14600lm | 162 lm/W |
| 40% | 60W | 70 | 9800lm | 163 lm/w | 10800lm | 180 lm/w | 10000lm | 167 lm/W |
| MHB08160W | ||||||||
| CONLOCATIO |
SYSTEM WATTS | CRI | 3000K | 4000K | 5000K | |||
| LUMENS | LPW | LUMENS | LPW | LUMENS | LPW | |||
| 100% | 160W | 70 | 25500lm | 159 lm/w | 28000lm | 175 lm/w | 27000lm | 169 lm/W |
| 80% | 128W | 70 | 21200lm | 166 lm/w | 22800lm | 178 lm/w | 22000lm | 172 lm/W |
| 60% | 96W | 70 | 16500lm | 172 lm/w | 17500lm | 182 lm/w | 17000lm | 177 lm/W |
| 40% | 64W | 70 | 11300lm | 177 lm/w | 12000lm | 188 lm/w | 11600lm | 181 lm/W |
| MHB08210W | ||||||||
| CONLOCATIO |
SYSTEM WATTS | CRI | 3000K | 4000K | 5000K | |||
| LUMENS | LPW | LUMENS | LPW | LUMENS | LPW | |||
| 100% | 210W | 70 | 30200lm | 144 lm/w | 32000lm | 152 lm/w | 30500lm | 145 lm/W |
| 80% | 168W | 70 | 24500lm | 146 lm/w | 26500lm | 158 lm/w | 25000lm | 149 lm/W |
| 60% | 126W | 70 | 19000lm | 151 lm/w | 21000lm | 167 lm/w | 2000lm | 159 lm/W |
| 40% | 84W | 70 | 13500lm | 161 lm/w | 14500lm | 173 lm/w | 14000lm | 167 lm/W |
| MHB08230W | ||||||||
| CONLOCATIO |
SYSTEM WATTS | CRI | 3000K | 4000K | 5000K | |||
| LUMENS | LPW | LUMENS | LPW | LUMENS | LPW | |||
| 100% | 230W | 70 | 34000lm | 148lm/w | 32000lm | 152 lm/w | 30500lm | 145 lm/W |
| 80% | 184W | 70 | 28000lm | 146 lm/w | 26500lm | 158 lm/w | 25000lm | 149 lm/W |
| 60% | 138W | 70 | 22000lm | 151 lm/w | 21000lm | 167 lm/w | 2000lm | 159 lm/W |
| 40% | 92W | 70 | 15500lm | 161 lm/w | 14500lm | 173 lm/w | 14000lm | 167 lm/W |
| MHB08235W (Single CCT only) | ||||||||
| CONLOCATIO |
SYSTEM WATTS | CRI | 3000K | 4000K | 5000K | |||
| LUMENS | LPW | LUMENS | LPW | LUMENS | LPW | |||
| 100% | 235W | 70 | 37000im | 157 lm/w | 40000lm | 170 lm/w | 40000lm | 170 lm/w |
| 80% | 188W | 70 | 31000lm | 165 lm/w | 33000lm | 176 lm/w | 33000lm | 176 lm/w |
| 60% | 141W | 70 | 24000lm | 170 lm/w | 25500lm | 181 lm/w* | 25500lm | 181 lm/w* |
| 40% | 94W | 70 | 16500lm | 176 lm/w | 17500lm | 186 lm/w | 17500lm | 186 lm/w |

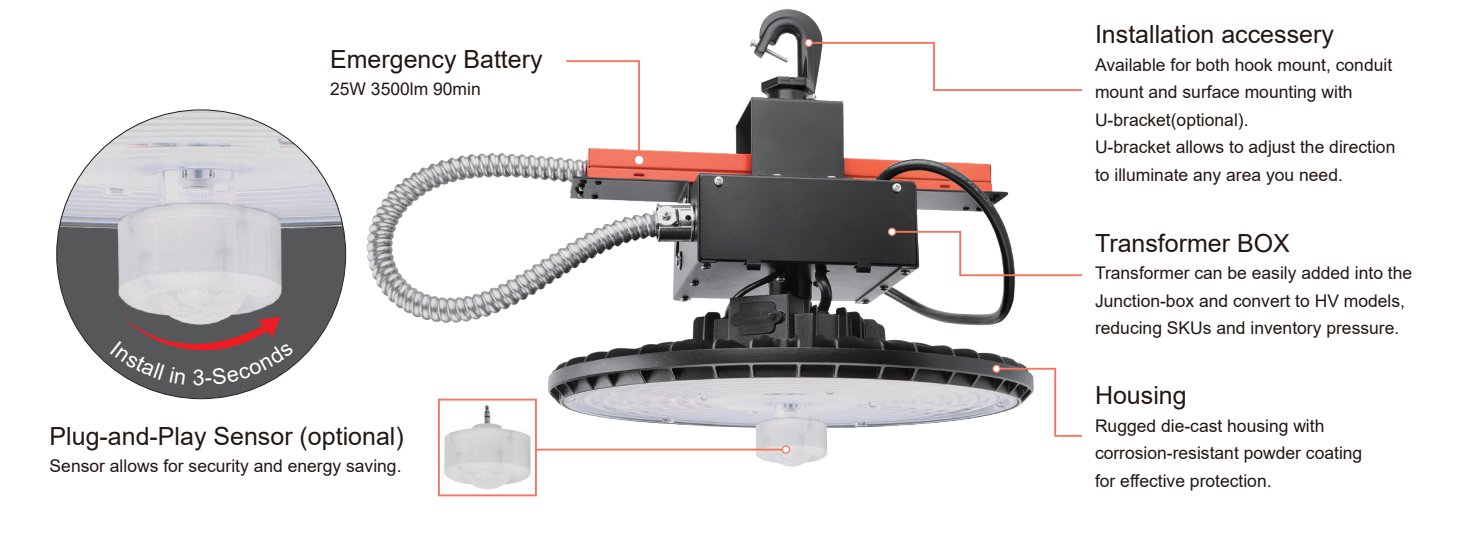

ACCESSORIES (Libitum)
 |  |  |  |  |  |

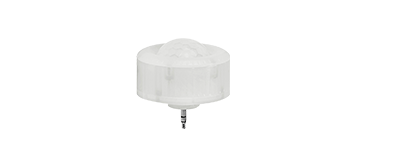

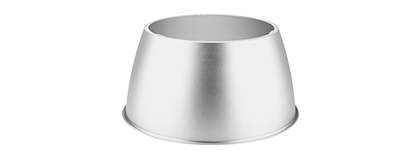

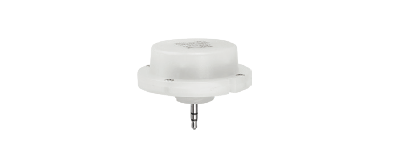

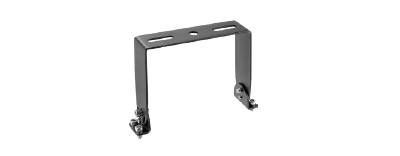

| Subitis Pugna 25W 3500lm 90min, sectam pro 210W.230W 16W 2000lm 90min. sectam pro 100W, 150W, 160W | Plug-and-play PlR sensorem PIR sensorem: MSANT12VPH01 Bluetooth PlR sensorem: MSANT12VPHB01 | Proin ac tincidunt libero, plug sensorem Proin sens: MSANT12VMH01 Proin sensorem Bluetooth: MSANT12VMH01 | U-Bracket Usus ad superficiem montis | Aluminium Reflector | PC Reflector |

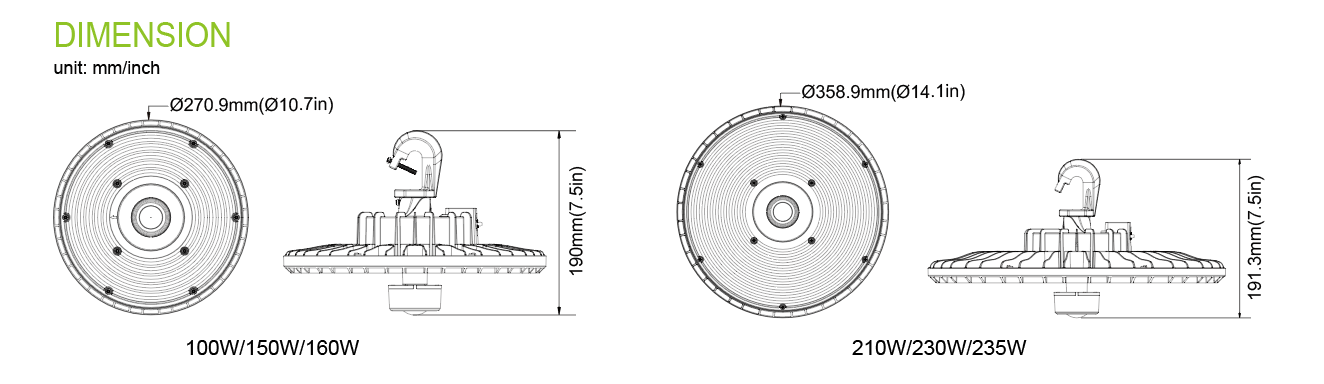

DIMENSIONE

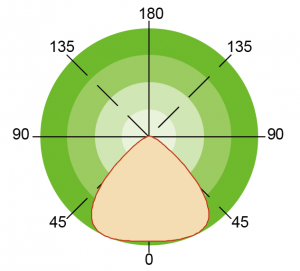

PHOTOMETRICS

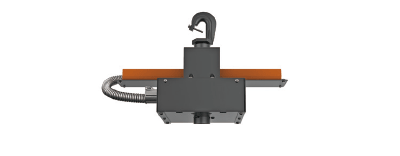

ASCENSIO
ORDINATIO GUIDE
| ORDINE GUIDE Exemplum: MHB08210W27V YYYYY Y | ||||||||||||
| Fixture Type | Wattage | Voltage | CCT | perago | Sensorem (Option | Subitis Pugna (Option) | CCT and Power Product | Internum Code | ||||
| MHB08 Princeps Bay Series | 100W 150W 160W² 210W 230W | 27V 120-277V 34V 120-347V 48V 347/480V | DDK Product color temperatus 30K¹ 3000K 40K¹4000K 50K¹5000K | D Dark Bronze B Niger W White | M Cum Sensor Blank Sine Sensor | B Cum tumultuarios altilium Blank Sine tumultuarios altilium | AD Cum De revolutionibus Alternis sermonibus Blank Sine revolutionibus Alternis sermonibus | Blank Alphanumeric 2 Cum 2 CCTs Dial III In III CCTs Alternis sermonibus | ||||
Nota: 1. Tantum 235W sectam pro singulis CCT 30K, 40K vel 50K.
2. Temperatura ambiens 160W et 235W est: -40°C ad 45°C.
