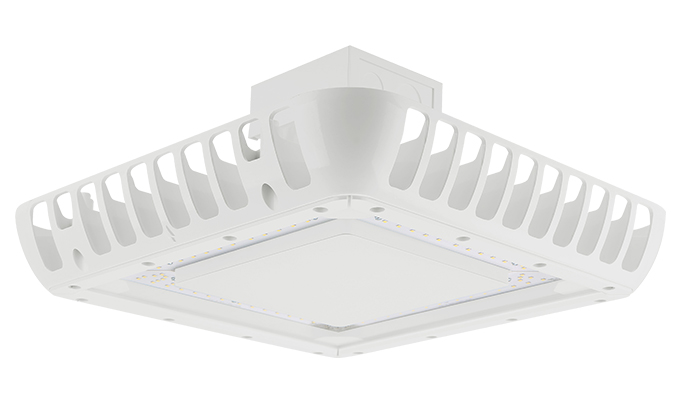

KANOPI LED MGC01
Lampu Kanopi Stasiun Gas MESTER minangka solusi sing cocog kanggo lampu kanopi sing ramah anggaran. Bisa digunakake ing bangunan komersial, struktur parkir, stasiun bensin, entri sing aman, kanopi njaba lan akeh aplikasi liyane.
Nalika ngganti nganti 400W MH, bisa ngirit 86% energi. Fitur desain struktur pambuangan panas sing apik lan desain optik presisi nyedhiyakake efek cahya sing apik kanthi umur nganti 50.000 jam diiringi kinerja optik sing apik banget.
SPESIFIKASI FITUR
Konstruksi
● Omah aluminium die-cast ngamanake panel LED konduktif termal lan
kamar listrik.
● Casting thermally nganakake panas LED kanggo ngoptimalake kinerja lan umur dawa.
●Kanthi lapisan bubuk tahan karat sing menehi perlindungan lan arsitektur
katon nalika adaptasi uga kanggo lingkungan njero ruangan lan njaba.
Optik
● Mesin cahya kasedhiya ing konfigurasi standar 4000 K lan 5000 K (70 CRI).
● Paket Lumen Scalable saka 10.000 kanggo 23.000 Lumens.
● Lensa kaca Tempered dirancang kanggo output cahya banget lan uniformity.
●Jinis lampu Tipe III opsional nyedhiyakake katerangan pojok tanpa mbuwang cahya.
listrik
●Universal 120-277 VAC utawa 347/480VAC voltase input
● 0-10V dimming standar driver kanggo 10% kanggo 100% dimming
● Kaloro driver duwe faktor daya> 90%, THD <20%.
● Kisaran Suhu Operasi: -40°C nganti 50°C (-40˚F - + 122˚F).
Umur urip
● Kira-kira umur LED 50.000 jam adhedhasar asil IES LM-80 lan petungan TM-21.
Garansi
● Garansi winates limang taun.
Sertifikasi
● UL cUL udan lokasi kadhaptar.
Cathetan
●Kinerja nyata bisa beda-beda amarga lingkungan lan aplikasi pangguna pungkasan.
Kabeh nilai desain utawa nilai khas, diukur ing kahanan laboratorium ing25°C(±5°C) spesifikasi bisa diganti tanpa kabar.
DATA KINERJA
| MGC0198W (Distribusi Umum) | ||||||||
| SETTING | SISTEM WAT | DISTRIBUSI | 4000K | 5000K | ||||
| LUMEN(70 CRI) | LPW (70 CRI) | LUMEN(70 CRI) | LPW(70 CRI) | |||||
| 100% | 98W | Umum | 15000lm | 153 lm/W | 15000lm | 153 lm/W | ||
| 80% | 78W | Umum | 12300lm | 158 lm/W | 12300lm | 158 lm/W | ||
| 60% | 59W | Umum | 9600lm | 163 lm/W | 9600lm | 163 lm/W | ||
| 40% | 39W | Umum | 6700lm | 172 lm/W | 6700lm | 172 lm/W | ||
| MGC01100W (Distribusi Umum) | ||||||||
| SETTING | SISTEM WAT | DISTRIBUSI | 4000K | 5000K | ||||
| LUMEN(70 CRI) | LPW (70 CRI) | LUMEN(70 CRI) | LPW(70 CRI) | |||||
| 100% | 100W | Umum | 15000lm | 150 lm/W | 15000lm | 150 lm/W | ||
| 80% | 80W | Umum | 12300lm | 154 lm/W | 12300lm | 154 lm/W | ||
| 60% | 60W | Umum | 9600lm | 160 lm/W | 9600lm | 160 lm/W | ||
| 40% | 40W | Umum | 6700lm | 166 lm/W | 6700lm | 166 lm/W | ||
| MGC01135W (Distribusi Umum) | ||||||||
| SETTING | SISTEM WAT | DISTRIBUSI | 4000K | 5000K | ||||
| LUMEN(70 CRI) | LPW (70 CRI) | LUMEN(70 CRI) | LPW(70 CRI) | |||||
| 100% | 135W | Umum | 21000lm | 156 lm/W | 21000lm | 156 lm/W | ||
| 80% | 108W | Umum | 17500lm | 162 lm/W | 17500lm | 162 lm/W | ||
| 60% | 81W | Umum | 13600lm | 168 lm/W | 13600lm | 168 lm/W | ||
| 40% | 54W | Umum | 9500lm | 176 lm/W | 9500lm | 176 lm/W | ||
| MGC01135W (Tipe Ⅲ Distribusi) | ||||||||
| SETTING | SISTEM WAT | DISTRIBUSI | 4000K | 5000K | ||||
| LUMEN(70 CRI) | LPW (70 CRI) | LUMEN(70 CRI) | LPW(70 CRI) | |||||
| 100% | 135W | Tipe lll | 20000lm | 148 lm/W | 20000lm | 148 lm/W | ||
| 80% | 108W | Tipe lll | 16300lm | 151 lm/W | 16300lm | 151 lm/W | ||
| 60% | 81W | Tipe lll | 12700lm | 157 lm/W | 12700lm | 157 lm/W | ||
| 40% | 54W | Tipe lll | 8800lm | 163 lm/W | 8800lm | 163 lm/W | ||
| MGC01150W (Distribusi Umum) | ||||||||
| SETTING | SISTEM WAT | DISTRIBUSI | 4000K | 5000K | ||||
| LUMEN(70 CRI) | LPW (70 CRI) | LUMEN(70 CRI) | LPW(70 CRI) | |||||
| 100% | 150W | Umum | 23000lm | 153 lm/W | 23000lm | 153 lm/W | ||
| 80% | 120W | Umum | 19000lm | 158 lm/W | 19000lm | 158 lm/W | ||
| 60% | 90W | Umum | 14800lm | 164 lm/W | 14800lm | 164 lm/W | ||
| 40% | 60W | Umum | 10200lm | 170 lm/W | 10200lm | 170 lm/W | ||
| MGC01150W (Tipe Ⅲ Distribusi) | ||||||||
| SETTING | SISTEM WAT | DISTRIBUSI | 4000K | 5000K | ||||
| LUMEN(70 CRI) | LPW (70 CRI) | LUMEN(70 CRI) | LPW(70 CRI) | |||||
| 100% | 150W | Tipe lll | 22000lm | 147 lm/W | 22000lm | 147 lm/W | ||
| 80% | 120W | Tipe lll | 18000lm | 150 lm/W | 18000lm | 150 lm/W | ||
| 60% | 90W | Tipe lll | 14000lm | 156 lm/W | 14000lm | 156 lm/W | ||
| 40% | 60W | Tipe lll | 9700lm | 162 lm/W | 9700lm | 162 lm/W | ||
| MGC0165W (Distribusi Umum) | ||||||||
| SETTING | SISTEM WAT | DISTRIBUSI | 4000K | 5000K | ||||
| LUMEN(70 CRI) | LPW (70 CRI) | LUMEN(70 CRI) | LPW(70 CRI) | |||||
| 100% | 65W | Umum | 10000lm | 154 lm/W | 10000lm | 154 lm/W | ||
| 80% | 52W | Umum | 8200lm | 158 lm/W | 8200lm | 158 lm/W | ||
| 60% | 39W | Umum | 6300lm | 162 lm/W | 6300lm | 162 lm/W | ||
| 40% | 26W | Umum | 4400lm | 169 lm/W | 4400lm | 169 lm/W | ||
AKSESORI (Opsional)
 |  |  |

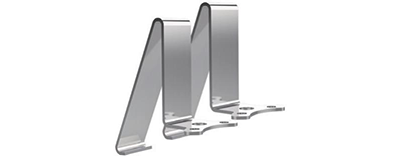

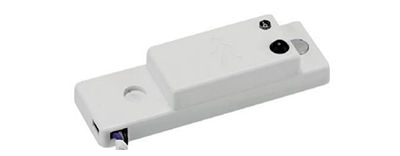

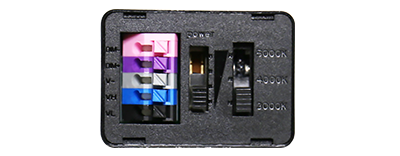

| Spring fitting | Pengontrol Daya USE: Wattage bisa diganti dening ngalih pilihan ing controller.. | Sensor gelombang mikro, 12V Katrangan: Sensor bisa dipasang ing piranti. |
DATA LISTRIK
| JUMLAH DRIVERS | DRIVER SAIKI (mA) | DAYA NOMINAL (W) | NPUTVOLTAGE (V) | SAIKI (Ampelas) |
| 1 | 1750 | 65 | 120 | 0.54 |
| 65 | 208 | 0.31 | ||
| 65 | 240 | 0.27 | ||
| 65 | 277 | 0.23 | ||
| 65 | 347 | 0.19 | ||
| 65 | 480 | 0.14 | ||
| 1 | 2600 | 98 | 120 | 0.82 |
| 98 | 208 | 0.47 | ||
| 98 | 240 | 0.41 | ||
| 98 | 277 | 0.35 | ||
| 98 | 347 | 0.28 | ||
| 98 | 480 | 0.20 | ||
| 1 | 2600 | 100 | 120 | 0.83 |
| 100 | 208 | 0.48 | ||
| 100 | 240 | 0.42 | ||
| 100 | 277 | 0.36 | ||
| 100 | 347 | 0.29 | ||
| 100 | 480 | 0.21 | ||
| 1 | 1200 | 135 | 120 | 1.13 |
| 135 | 208 | 0.65 | ||
| 135 | 240 | 0.56 | ||
| 135 | 277 | 0.49 | ||
| 145 | 347 | 0.42 | ||
| 145 | 480 | 0.30 | ||
| 1 | 1200 | 150 | 120 | 1.25 |
| 150 | 208 | 0.72 | ||
| 150 | 240 | 0.63 | ||
| 150 | 277 | 0.54 | ||
| 160 | 347 | 0.46 | ||
| 160 | 480 | 0.33 |

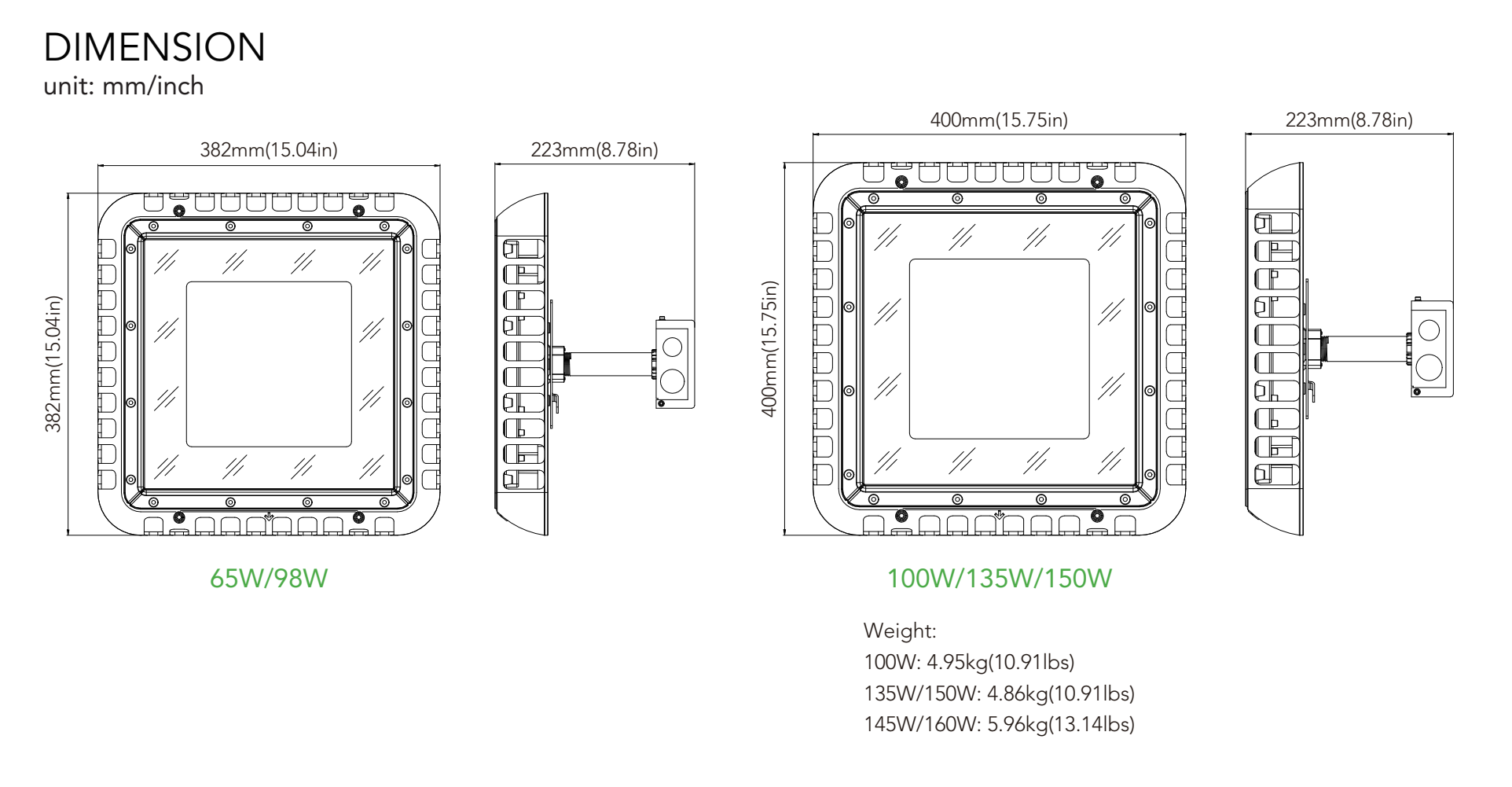

DIMENSI

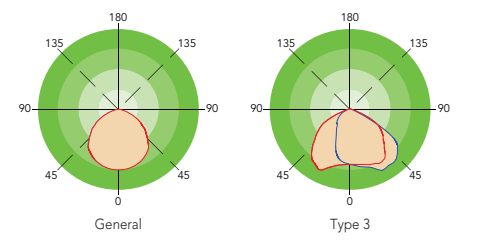

FOTOMETRIK
MOUNTING
| PANDUAN ORDER Tuladha:MGC0165W27V40KYYYY | |||||||
| Tipe Fixture | Watt | Tegangan | CCT | Rampung | Lensa | Kontrol | Kode Internal |
| MGC01 Seri Kanopi | 65W 98W 100W 135W 145W 150W 160W | 27V 120-277V 48V 347/480V 48V 347-480V | 40K 4000K 50K 5000K | D Bronze peteng B Ireng W Putih SG Silver Grey | CD Clear Diffuser Lensa T3 Tipe Ⅲ | Kosong Tanpa kontrol M karo Senor AD Kanthi Imbuhan Dia MAD Kanthi Sensor Gerak lan Imbuhan Dia | kosong Alfanumerik |
Cathetan: 1. model 135W ing 120-277V, iku 145W ing 347/480V.
2. model 150W ing 120-277V, iku 160W ing 347/480V.
3. Mung 65W, 98W lan 100W cocog kanggo voltase input 347-480V.
