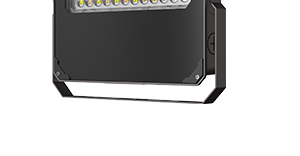

LAMPU BANJIR LED MFD12
MFD12 minangka lampu banjir LED sing kuat 36-in-1. Iki dirancang kanggo dadi produk serbaguna
karo garis prasaja. Ora mung nyedhiyakake telung sudut sinar sing bisa dipilih, nanging uga 4 tingkat
saka output lumen lan 3 CCTs dipilih kasedhiya, kang nemen mbenakake ing
keluwesan produk lan èfèktif nyuda nomer SKU lan kangelan
saka pilihan. MFD12 uga menehi macem-macem cara instalasi, nggawe iku becik
pilihan kanggo macem-macem aplikasi umum. Iku cocok kanggo produk tampilan, cahya
koridor, eksterior bangunan, papan reklame lan lampu sorot bangunan liyane, uga
lampu lanskap ing taman, alun-alun, papan dolanan lan papan liyane.
SPESIFIKASI FITUR
Konstruksi
● Minangka bagéan utama saka lampu, aluminium die-cast menehi Manajemen boros panas banget, èfèktif prolonging gesang lampu lan Ngapikake efficiency saka LED.
● Kaca tempered sing disegel kanthi lengkap kanggo ngluwihi daya tahan peralatan.
● Omah wis rampung disegel, nyediakake pangayoman banget marang Kelembapan lan rereged lingkungan.
● Low profile, 1.5G geter dirating desain kompak minimalake syarat mbukak angin.
Optik
● Paket lumen Expandable saka 3900 kanggo 21.900 lumens.

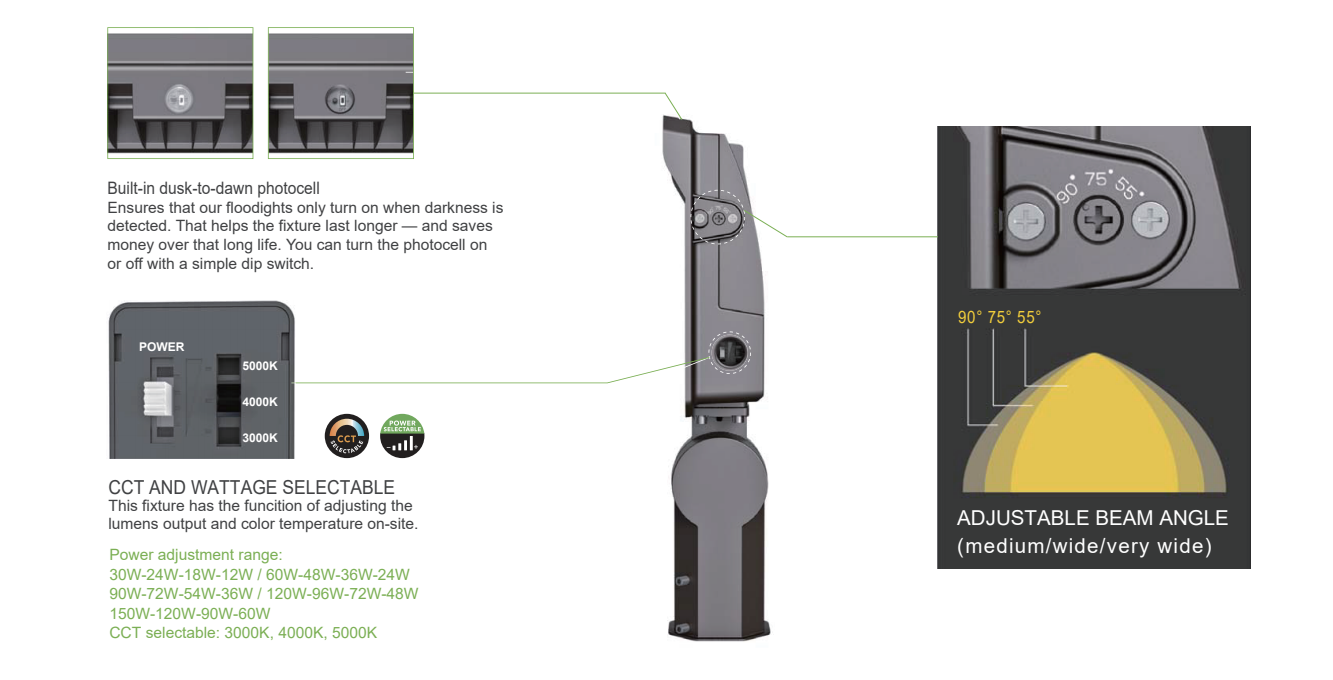

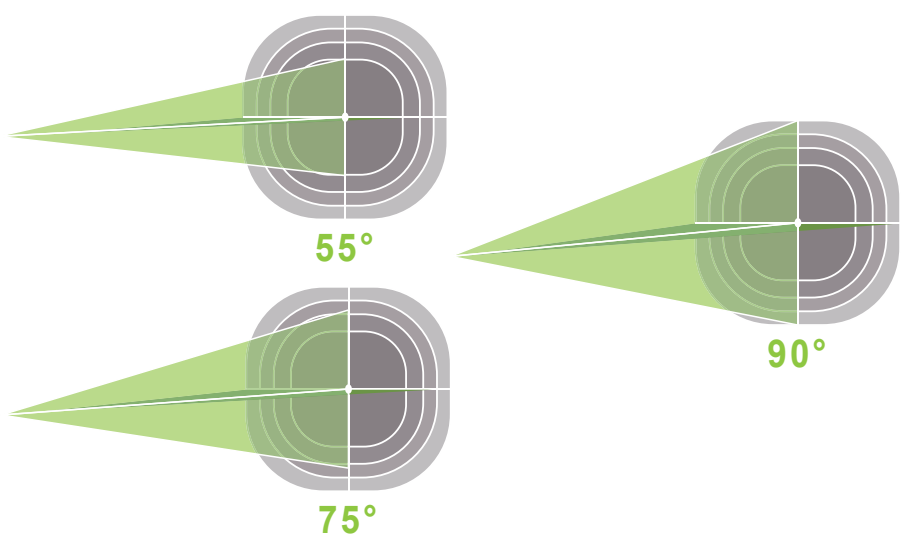

● Ana telung sudut sinar sing bisa diatur 90°75°55° lan amba/medium banget
sudhut / sudhut cahya sudhut.
● Precision dirancang lensa optik individu nyedhiyani kombinasi paling apik
cahya vertikal lan horisontal kanggo uniformity luwih nalika nambah comfort visual.
● Kaca kenceng sing tahan panas lan tahan benturan ngoptimalake cahya
ekstraksi nalika entuk tampilan wengi sing apik.
Modul LED
● Engine cahya duwe versi luwes werna, CCT bisa diatur kanggo 3000K / 4000K / 5000K.
● CRI≥80.
listrik
● Universal 120-277 VAC voltase input.
● 0-10V cahya drive standar, 10% kanggo 100% dimming.
● Kaloro driver duwe faktor daya> 90%, THD <20%.
● Saben model bisa diatur papat watt: 100%, 80%, 60%, 40%
● Kisaran suhu operasi: -30 ℃ nganti + 40 ℃ (-22˚F nganti + 104˚F).
Kontrol
● Pilihan Photocell.
Instalasi
● 1/2" NPS Knuckle, Slipfitter, Trunnion lan Yoke kasedhiya kabeh
Garansi
● Garansi winates limang taun.
Sertifikasi
● UL cUL udan lokasi kadhaptar.
Umur urip
● Perkiraan umur LED 50.000 jam adhedhasar asil IES LM-80 lan petungan TM-21
Garansi
● Garansi limang taun
Cathetan
Kinerja nyata bisa beda-beda amarga lingkungan lan aplikasi pangguna pungkasan. Kabeh nilai desain utawa nilai khas, diukur ing kahanan laboratorium ing 25 ℃ (± 5 ℃) specifications bisa diganti tanpa kabar.
DESAIN STRUKTURAL
DATA KINERJA
| SISTEMWATTS | VOLTAGE | DIST.JENIS | CRI | LUMEN(3000K) | LPW(3000K) | LUMEN (3500K) | LPW(3500K) | LUMEN (4000K) | LPW(4000K) | |||
| 15W | 120-277V | 7hx7v | 70 | 2050lm | 137 | Aku/W | 2300lm | 153 | Aku/W | 2100lm | 140 | Aku/W |
| 27W | 120-277V | 7hx7v | 70 | 3500lm | 130 | Aku/W | 3800lm | 141 | Aku/W | 3600lm | 133 | Aku/W |
| 40W | 120-277V | 7hx7v | 70 | 5700lm | 143 | Aku/W | 6000lm | 150 | Aku/W | 5800lm | 145 | Aku/W |
| 65W | 120-277V | 7hx7v | 70 | 9200lm | 142 | Aku/W | 9700lm | 149 | Aku/W | 9400lm | 145 | Aku/W |
| 90W | 120-277V | 7hx7v | 70 | 13400lm | 149 | Aku/W | 14500lm | 161 | Aku/W | 13500lm | 150 | Aku/W |
| 120W | 120-277V | 7hx7v | 70 | 17500lm | 146 | Aku/W | 19000lm | 158 | Aku/W | 18000lm | 150 | Aku/W |
Tabel OUTPUT LUMEN luwes
| MFD1230W(90°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN (80CRI) | LPW (80CRI) | LUMEN (80CRI) | LPW (80CRI) | LUMEN (80CRI) | LPW (80CRI) | ||
| 100% | 30W | 3990lm | 133 lm/w | 4680lm | 156 lm/w | 4350lm | 145 lm/W |
| 80% | 24W | 3360lm | 140 lm/w | 3960lm | 165 lm/w | 3670lm | 153 lm/W |
| 60% | 18W | 2650lm | 147 lm/w | 3090lm | 172 lm/w | 2860lm | 159 lm/W |
| 40% | 12W | 1850lm | 154 lm/w | 2150lm | 179 lm/w | 1990lm | 166 lm/W |
| MFD1230W(75°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 30W | 3870lm | 129 lm/w | 4500lm | 150 lw | 4170lm | 139 Aku/w |
| 80% | 24W | 3260lm | 136 lm/w | 3780lm | 157 lw | 3500lm | 146 im/w |
| 60% | 18W | 2560lm | 142 lm/w | 2950lm | 164 lm/w | 2740lm | 152 Aku/w |
| 40% | 12W | 1790lm | 149 lm/w | 2060lm | 172 lm/w | 1910lm | 159 lm/w |
| MFD1230W(55°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 30W | 3600lm | 120 lm/w | 4210lm | 140 lm/w | 3900lm | 130 Aku/w |
| 80% | 24W | 3020lm | 126 lm/w | 3550lm | 148 lm/w | 3290lm | 137 im/w |
| 60% | 18W | 2380lm | 132 lm/w | 2780lm | 154 lm/w | 2570lm | 143 im/w |
| 40% | 12W | 1670lm | 139 lm/w | 1930lm | 161 lm/w | 1790lm | 149 im/w |
| MFD1260W(90°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 60W | 8040lm | 134 lm/w | 9380lm | 156 lm/w | 8700lm | 145 lm/w |
| 80% | 48W | 6720lm | 140 im/w | 7920lm | 165 im/w | 7340lm | 153 lm/w |
| 60% | 36W | 5290lm | 147 lm/w | 6170lm | 171 lm/w | 5720lm | 159 lm/w |
| 40% | 24W | 3700lm | 154 lm/w | 4300m | 179 lm/w | 3980lm | 166 lm/w |
| MFD1260W(75°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 60W | 7800lm | 130 lm/w | 9000lm | 150 lw | 8340lm | 139 lm/w |
| 80% | 48W | 6530lm | 136 lm/w | 7560lm | 157 lm/w | 7010lm | 146 lm/w |
| 60% | 36W | 5110lm | 142 lm/w | 5900lm | 164 lm/w | 5470lm | 152 lm/w |
| 40% | 24W | 3580lm | 149 lm/w | 4120lm | 171 lm/w | 3820lm | 159 lm/w |
| MFD1260W(55°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 60W | 7260lm | 121 lm/w | 8410lm | 140 lm/w | 7800lm | 130 lm/w |
| 80% | 48W | 6050lm | 126 lm/w | 7090lm | 148 lm/w | 6580lm | 137 lm/w |
| 60% | 36W | 4750lm | 132 lm/w | 5550lm | 154 lm/w | 5150lm | 143 lm/w |
| 40% | 24W | 3340lm | 139 lm/w | 3860lm | 161 lm/w | 3580lm | 149 lm/w |
| MFD1290W(90°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 9 dhuh | 12060lm | 134 lm/w | 14070lm | 156 lm/w | 13050lm | 145 lm/w |
| 80% | 72W | 10080lm | 140 im/w | 11880lm | 165 lm/w | 11020lm | 153 lm/w |
| 60% | 54V | 7940lm | 147 im/w | 9260lm | 171 im/w | 8590lm | 159 lm/w |
| 40% | 36W | 5540lm | 154 lm/w | 6450lm | 179 im/w | 5980lm | 166 lm/w |
| MFD1290W(75°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 9 dhuh | 11700 iki | 130 lm/w | 13490lm | 150 lm/w | 12510 ing | 139 lm/w |
| 80% | 72W | 9790lm | 136 lm/w | 11340lm | 157 lm/w | 10510lm | 146 lm/w |
| 60% | 54V | 7670lm | 142 lm/w | 8 850m | 164 lm/w | 8210lm | 152 lm/w |
| 40% | 36W | 5360lm | 149 lm/w | 6170lm | 171 lm/w | 5720lm | 159 lm/w |
| MFD1290W(55°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 9 dhuh | 10900lm | 121 im/w | 12620lm | 140 im/w | 11700lm | 130 lw |
| 80% | 72W | 9080lm | 126 lm/w | 10640lm | 147 lw | 9860lm | 137 lm/w |
| 60% | 54V | 7130lm | 132 lm/w | 8330lm | 154 lm/w | 7720lm | 143 lm/w |
| 40% | 36W | 5000lm | 139 lm/w | 5890lm | 161 lm/w | 5360lm | 149 lm/w |
| MFD12120W(90°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 120W | 16320m | 136 lm/w | 18900lm | 157 lm/w | 17520lm | 146 lm/w |
| 80% | 96WV | 13440lm | 140 lm/w | 15840lm | 165 lm/w | 14690lm | 153 lm/w |
| 60% | 72W | 10580lm | 147 im/w | 12350lm | 171 lm/w | 11450lm | 159 lm/w |
| 40% | 48W | 7390lm | 154 lm/w | 8590lm | 179 lm/w | 7970lm | 166 lm/v |
| MFD12120W(75°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 120W | 15720lm | 131 lm/w | 18250lm | 152 lm/w | 16920lm | 141 lm/w |
| 80% | 96W | 13060lm | 136 lm/w | 15120lm | 157 lm/w | 14020lm | 146 lm/w |
| 60% | 72W | 10220lm | 142 lm/w | 11800lm | 164 lm/w | 10940 ing | 152 lm/w |
| 40% | 48W | 7150lm | 149 lm/w | 8230lm | 171 lm/w | 7630lm | 159 lm/w |
| MFD12120W(55°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 120W | 14640lm | 122 lm/w | 17080lm | 142 lm/w | 15840lm | 132 lm/w |
| 80% | 96W | 12100lm | 126 lm/w | 14180lm | 148 lm/w | 13150lm | 137 lm/w |
| 60% | 72W | 9500lm | 132 lm/w | 11100lm | 154 lm/w | 10300lm | 143 lm/w |
| 40% | 48W | 6670lm | 139 lm/w | 7710lm | 161lm/w | 7150lm | 149 lm/w |
| MFD12150W(90°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 150W | 20250lm | 135 lm/w | 23260lm | 157 lm/w | 21900lm | 146 lm/w |
| 80% | 120W | 16800lm | 140 lm/w | 19800lm | 165 lm/w | 18360lm | 153 lm/w |
| 60% | 90W | 13230lm | 147 Aku/w | 15430lm | 171 im/w | 14310lm | 159 lm/w |
| 40% | 60W | 9240lm | 154 lm/w | 10740lm | 179 lm/w | 9960lm | 166 lm/w |
| MFD12150W(75°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 150W | 19650lm | 131 lm/w | 22810lm | 152 lm/w | 21150lm | 141 lm/w |
| 80% | 120W | 16320lm | 136 lm/w | 18900m | 157 lm/w | 17520lm | 146 lm/w |
| 60% | 90W | 12780lm | 142 Aku/w | 14750lm | 164 lm/w | 13680lm | 152 im/w |
| 40% | 60W | 8940lm | 149 lm/w | 10290lm | 171 lm/w | 9540lm | 159 lm/w |
| MFD12150W(55°) | |||||||
| SETTING |
SISTEM WATTS | 3000K | 4000K | 5000K | |||
| LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | LUMEN(80CRI) | LPW(80CRI) | ||
| 100% | 150W | 18300lm | 122 lm/w | 21350lm | 142 lw | 19800lm | 132 lm/w |
| 80% | 120W | 15120lm | 126 lm/w | 17730lm | 148 lw | 16440lm | 137 lm/w |
| 60% | 90W | 11880lm | 132 Aku | 13880lm | 154 lm/w | 12870lm | 143 im/w |
| 40% | 60W | 8340lm | 139 im/w | 9640lm | 161 lm/w | 8940lm | 149 lm/w |

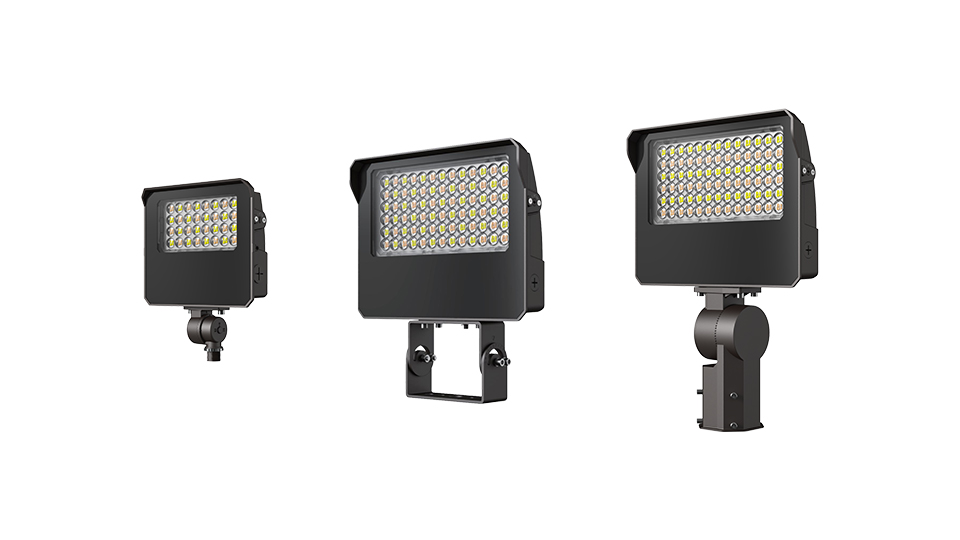

MOUNTING
 |  |  |  |

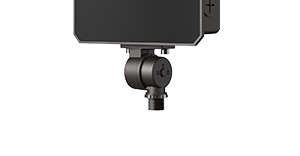

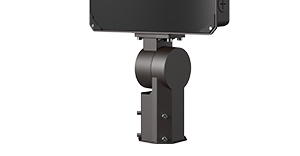

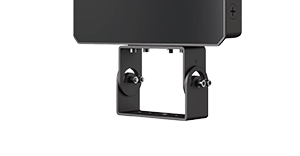

1/2" Knuckle Mount(15W/27W/45W/60W) | Gunung Trunnion(15W/27W/45W/60W/250W/350W) | Gunung Jok(70W/100W/135W/200W) | Slipfitter Gunung(70W/100W/135W/200W) |
FOTOMETRIK

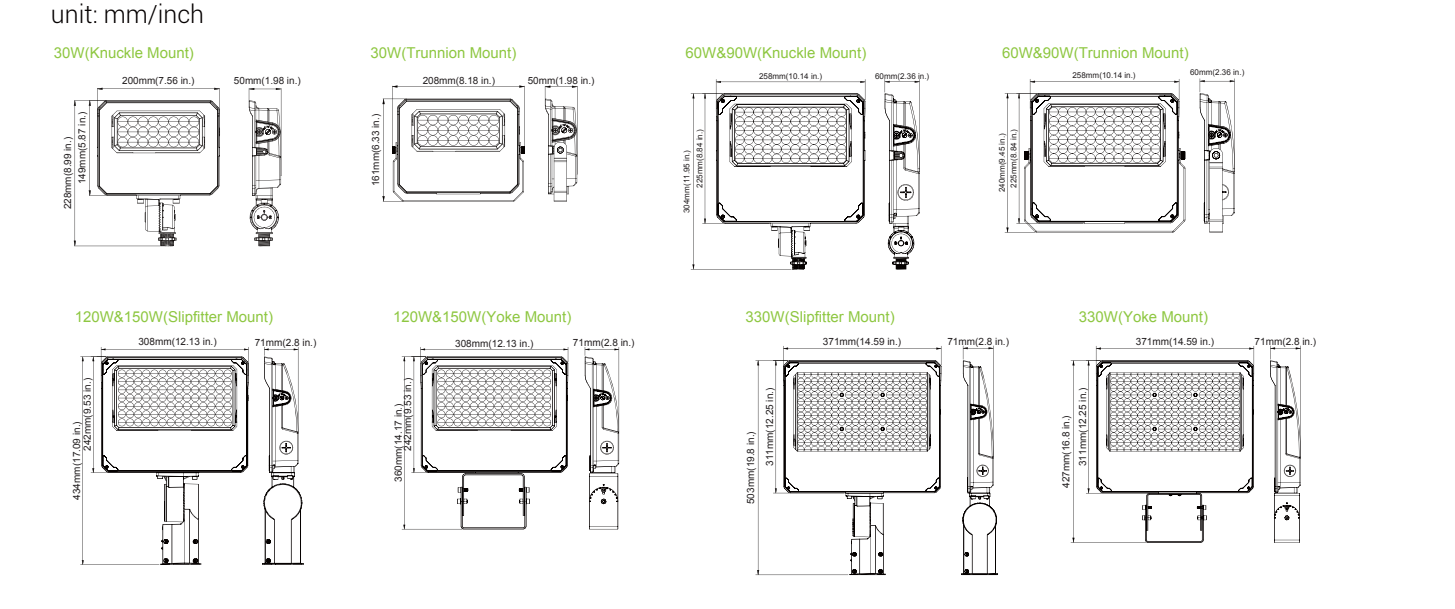

DIMENSI
MOUNTING
| PANDUAN ORDER Tuladha:MFD1260W27VDDKYYYYY | |||||||||||||
| Tipe Fixture | Watt | Tegangan | CCT | Rampung | Photocell (Pilihan) | Pemasangan | Sudut Beam | CCT lan Daya Bisa diatur | Kode Internal | ||||
| MFD12 Seri Cahya Banjir | 30 30W 60 60W 90 90W 120 120W150 150W | 27V120-277V | DDK³ Bisa diatur werna suhu | D Bronze peteng B Ireng W Putih | P Kanthi Photocell kosong Tanpa Photocell | TR¹ Trunnion KN¹ Knuckle YK² Yowes SP² Slipfitter | Bisa diatur Sudut Beam | AD kanthi dial pangaturan | kosong Alfanumerik | ||||
Cathetan:
1.30V / 60W / 90W mung cocok kanggo knucklie lan trunnion gunung.
2.120W.150W mung cocok kanggo slipfitter lan rakit gunung.
3.CCT Adiustable(3000K/4000K/5000K).
